ADAS Bay Max Lift

Hydraulic Lift for ADAS Calibration

DESCRIPTION

Autel ADAS Bay Max Lift provides precise vehicle calibration with adjustable height & a stable platform for accuracy

Learn More Where to Buy

TOP BENEFITS

Enhanced Calibration Accuracy

Supports precise 360-degree ADAS calibration

High Load Capacity

Offers options of 12,000 or 14,000-pound lifting

Durable Construction

Features stainless steel components for rust resistance

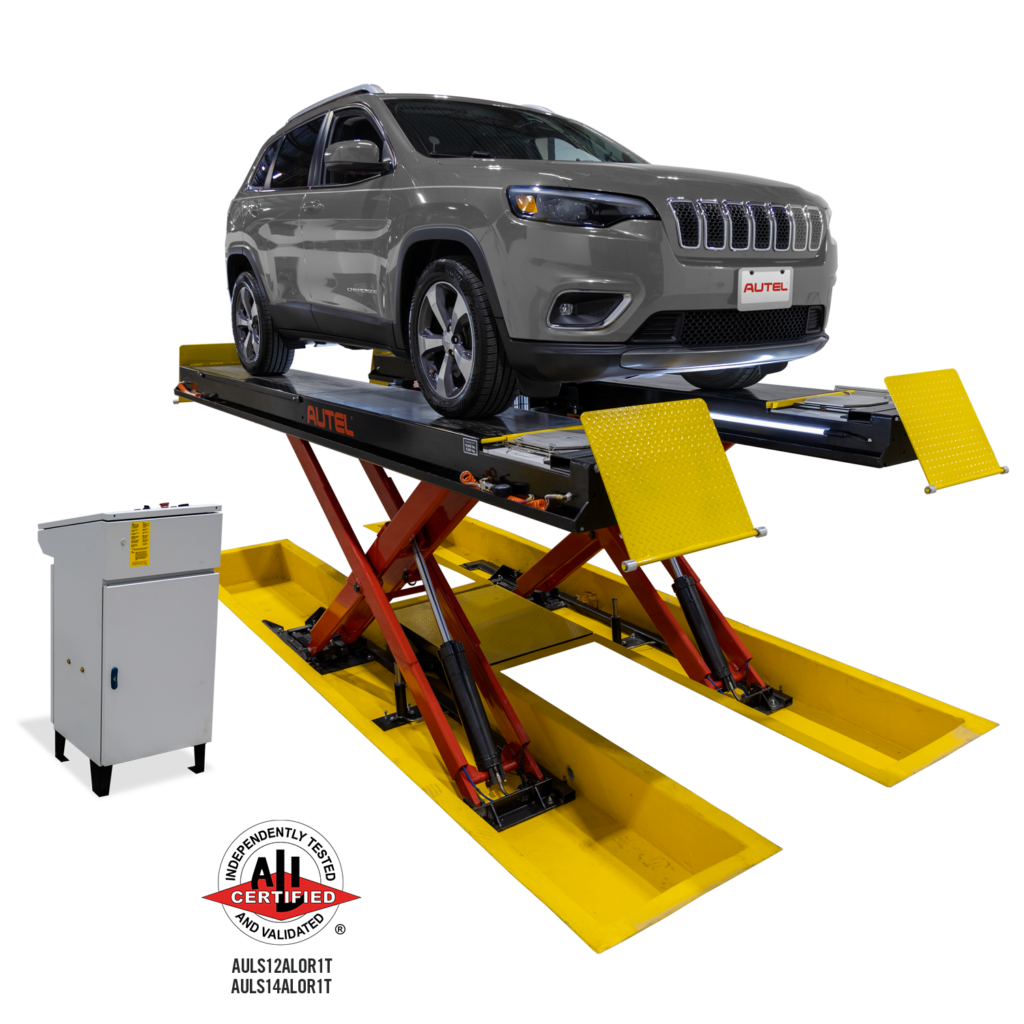

The Autel ADAS Bay Max Lift is a state-of-the-art hydraulic lift designed for mechanical repair, wheel alignment, and ADAS calibration. With a lifting capacity of either 12,000 or 14,000 pounds, it is ideal for heavy-duty use in professional automotive settings.

SPECIFICATIONS

Bay Max 12-14K Lift Flyer

Lifting Capacity: 12,000 lbs / 14,000 lbs
Overall Length: 242-3/4″ (12K) / 260-3/4″ (14K)
Deck Length: 185″ (12K) / 203″ (14K)
Overall Width: 91-1/2″
Width Between Runways: 41″
Deck Width: 23″
Lowered Height: 10-3/4″
Raised Height: 74″
Minimum 4-Wheel Alignment Wheelbase: 84″
Maximum 4-Wheel Alignment Wheelbase: 160″ (12K) / 164-1/2″ (14K)
Maximum 2-Wheel Alignment Wheelbase: 160″ (12K) / 178″ (14K)
Maximum Service Wheelbase: 167″ (12K) / 185″ (14K)
Lift Time: 58 seconds
Power Requirements: 230 Volts AC, 60 Hz, 1 PH, 25 amps
Shipping Weight: 5,890 lbs (12K) / 6,230 lbs (14K)
Material: Stainless steel
Certification: ALI Certified
Country of Origin: North America

TOP FEATURES

Advanced Hydraulic System

Ensures precise, smooth operation for heavy-duty use

Stainless Steel Construction

Offers enhanced durability and rust resistance

High Load Capacity

Accommodates 12,000 or 14,000 lbs for diverse vehicles

FAQ

1. What is the maximum lifting capacity?

The lift can handle up to 12,000 or 14,000 pounds, depending on the model.

2. What are the power requirements for the lift?

It requires 230 Volts AC, 60 Hz, 1 PH, and 25 amps.

3. How long does it take to lift a vehicle?

The lift time is approximately 58 seconds.

4. What is the raised height of the lift?

The raised height is 74 inches.

5. What materials are used in the construction?

The lift features stainless steel components for durability and rust resistance.

6. Is the lift suitable for wheel alignment?

Yes, it supports both 2-wheel and 4-wheel alignments.

7. What is the overall length of the lift?

The overall length is 242-3/4 inches for the 12K model and 260-3/4 inches for the 14K model.

8. What certifications does the lift have?

It is ALI certified, ensuring it meets industry safety standards.

9. Can the lift accommodate large trucks?

Yes, it has a high load capacity and versatile deck length to support a variety of vehicles, including large trucks.

10. What is the warranty on the lift?

For specific warranty details, please contact the manufacturer or authorized dealer.
